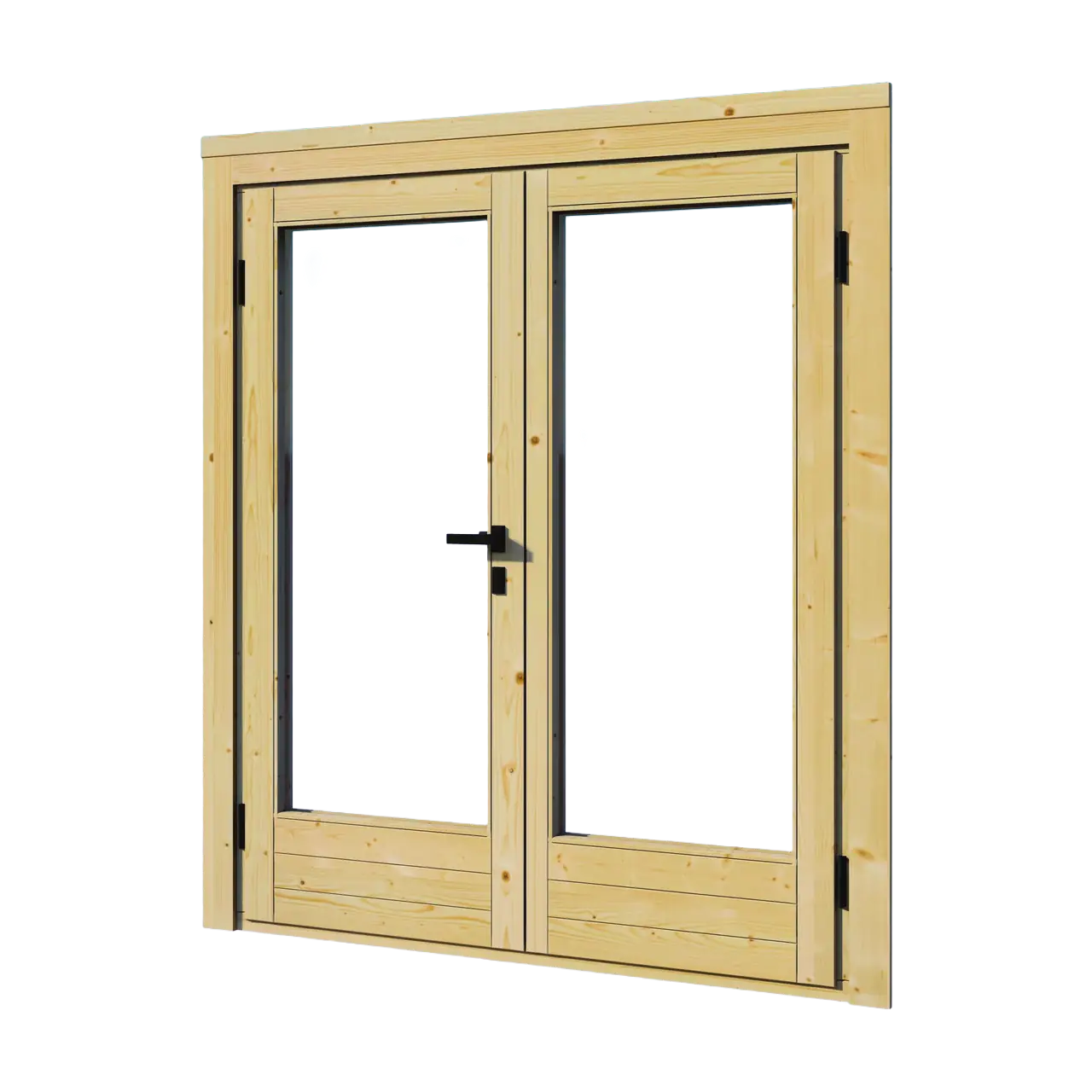

Double Door GDD-1

A premium laminated pine double door with a clean, modern profile and full-height glazing. Two large glass panels bring in maximum daylight, while the solid lower rails add strength and a grounded, finished look. Outward opening, weather-sealed.

Key specifications

Overall dimensions: 1854 x 2072 mm
Clear opening: 1508 x 1826 mm
4+16+4 Low-E ESG + Argon glazing, U-value 1.1
MACO 3-point security lock and adjustable hinges
Outward opening, rubber draught excluders included

Premium Laminated Pine Double Door with MACO Hardware

The GDD-1 is a premium outward-opening double door for use in timber garden buildings, log cabins, and summerhouses. Constructed from 68mm finger-jointed and laminated pine, it combines structural rigidity with the natural aesthetics of Nordic timber — making it a seamless match for Dadsons log cabin structures.

Performance and Security

At the core of the GDD-1 is a high-quality MACO 3-point locking system, delivering reliable security across the full height of the door frame. Adjustable MACO hinges allow precise alignment on installation and long-term adjustment as the timber naturally acclimates to its environment.

Thermal and Weather Performance

The two 4mm tempered glass panes are separated by a 16mm cavity (4+16+4) filled with Argon gas, which provides better insulation than air. One pane features a microscopically thin coating that reflects heat, enhancing energy efficiency by reducing thermal transfer (LowE). The silicone sealant ensures the unit remains airtight and watertight throughout its life. Overall, the composition achieves a U-value of 1.1. Rubber draught excluders on all sides deliver effective wind and water resistance, while an aluminium threshold strip protects the base against wear and moisture ingress. The spruce casing is finished with rubber sealants to ensure a weather-tight perimeter seal.

Dimensions and Delivery

The door unit measures 1854mm wide and 2072mm tall (overall frame), with a clear opening of 1508mm wide and 1826mm tall. All components are delivered as a pre-assembled, ready-to-fit unit.

Specifications

Width

185.4 cm

Height

207.2 cm

Doors

Applications

Garage & Vehicle Protection

Safeguard your vehicles and equipment from the elements with our robust protection solutions. Whether you need a secure double garage, an open-sided carport, or a boat shelter, we have you covered. Our pre-cut garage kits allow for quick assembly, while our structural timber beams and cladding provide the strength and durability required for custom-built vehicle storage projects.

Garden Retreat & Outdoor Living

Enhance your lifestyle by extending your living area into nature. Create a serene sanctuary for relaxation, reading, or yoga with our garden structures. Our durable timber decking, pergolas, and summer houses transform your garden into a functional outdoor living room. Experience the tranquility of natural wood and create a dedicated space for leisure and family enjoyment.

Guest Accommodation & Hospitality

Expand your living space and welcome visitors in style with high-quality guest accommodation. From cozy backyard cabins for family visits to premium holiday rental units for Airbnb, we provide the essential foundation. Our complete wooden houses offer turnkey convenience, while our structural timber ensures robust frameworks for custom hospitality projects and extensions.

Home Office & Creative Studio

Create the perfect productive environment just steps from your home. Whether you need a distraction-free home office, an inspiring art studio, or a craft workshop, our solutions offer the ideal space. Choose from our range of ready-made garden buildings or utilize our premium timber materials to construct a bespoke workspace designed for year-round comfort and professional focus.

Workshops & Hobby Rooms

Dedicate a robust space to your passions with our heavy-duty workshop solutions. Whether you are into woodworking, mechanics, or pottery, our "Active" line of garages and reinforced cabins offers the strength and space you need. With solid floors, thick walls for tool mounting, and ample room for workbenches, these buildings provide a secure and durable environment for all your hands-on projects and loud machinery.

Why choose Double Door GDD-1?

MACO 3-Point Security Locking

The GDD-1 is fitted with a premium 3-point lock from the MACO brand, engaging the frame at three points for superior security and reduced flex under load. Adjustable MACO hinges allow fine-tuning at installation and re-adjustment over the door's lifetime.

All-Weather Sealing System

Rubber draught excluders fitted around the entire door perimeter block wind and water ingress, while an aluminium threshold strip at the base provides durable protection against wear and moisture. The spruce casing is sealed with rubber sealants for a fully weather-tight installation. Double glazing with a 4+16+4 Low-E ESG + Argon composition achieves a U-value of 1.1, significantly reducing heat loss through the glazed panels.

Laminated Pine Construction

The 68mm finger-jointed and laminated pine profile delivers superior dimensional stability compared to solid timber, resisting warping and twisting across seasonal humidity changes. This ensures consistent operation and a reliable seal year after year.

Wide Double-Leaf Opening

With a clear opening width of 1508mm, the GDD-1 provides generous, practical access — ideal for garden rooms, garages, and summerhouses where moving furniture, equipment, or bicycles is required. The outward-opening design maximises usable interior space.

Frequently Asked Questions

The overall frame measures 1854mm wide by 2072mm tall. The clear opening (unobstructed passage width and height) is 1508mm wide by 1826mm tall.

The GDD-1 is constructed from 68mm finger-jointed and laminated pine. This engineered timber profile offers greater dimensional stability than solid wood, reducing the risk of warping or twisting over time.

The GDD-1 features 4+16+4 Low-E ESG + Argon double glazing with a U-value of 1.1. The Low-E coating and argon gas fill work together to minimise heat transfer, making the door suitable for thermally efficient buildings.

The GDD-1 is an outward-opening double door. This design is standard for garden buildings and maximises usable interior floor area by keeping the door swing outside the structure.

The GDD-1 includes a high-quality 3-point lock from MACO, a leading European hardware brand. Adjustable MACO hinges are also included, allowing precise alignment both at initial installation and as required over time.

Rubber draught excluders are fitted around the full door perimeter to block wind and water penetration. An aluminium threshold strip protects the bottom edge, and the spruce casing is finished with rubber sealants for a weather-tight seal.
