double-leafflat-packgarage-dooroutward-openingsprucesteel-hingesweatherproof

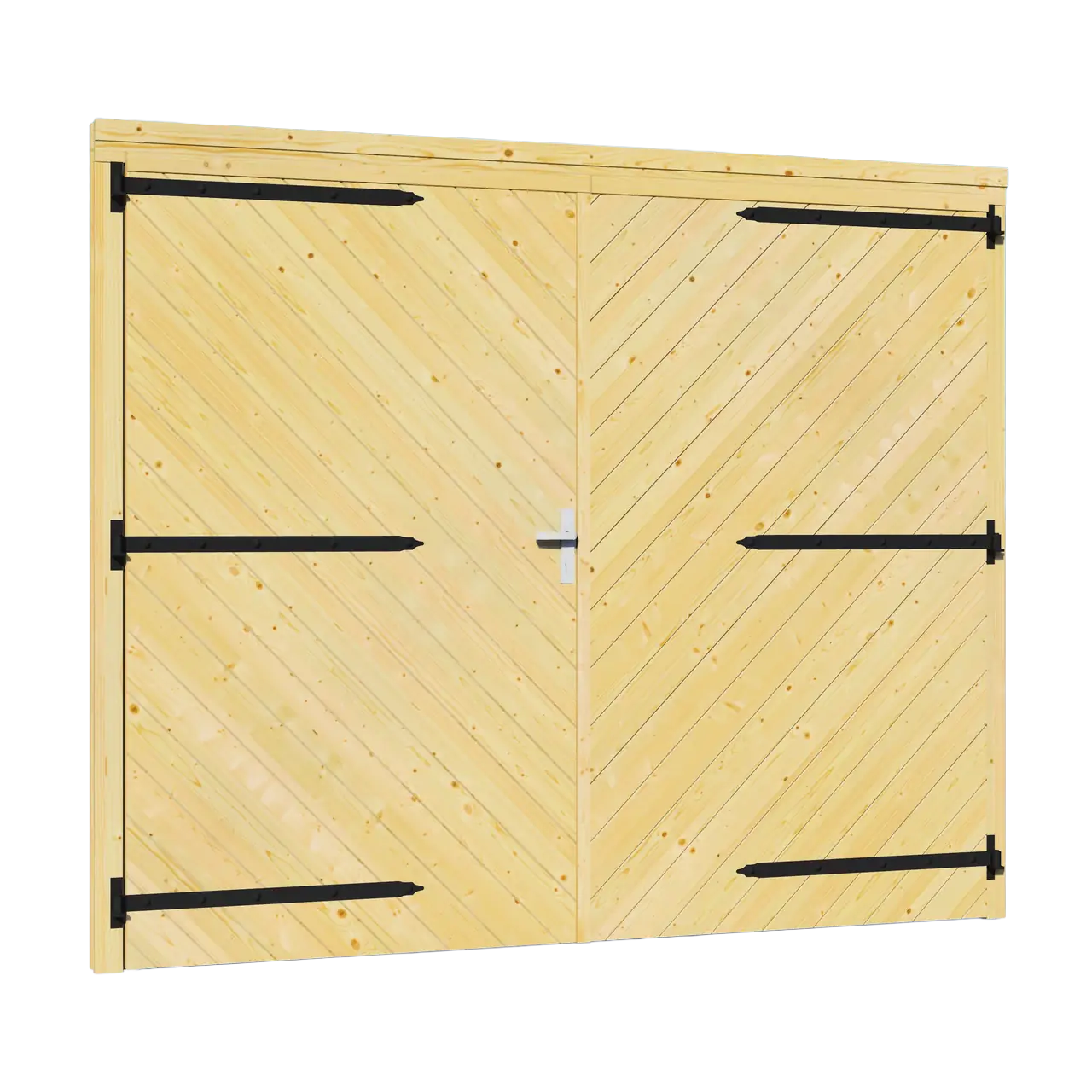

Garage Door SGD-2

Double-leaf timber garage door SGD-2. Spruce construction with steel hinges, rubber draught excluders, and outward opening design. 2576x2113mm. B2B supply across Europe.

Key specifications

Outer Dimensions: 2576x2113mm
35×110mm strengthened spruce frame
18mm thick spruce board cladding
800mm steel hinges, 4mm thick, black finish

Double-Leaf Spruce Garage Door with Steel Hardware

A robust outward-opening spruce garage door with a reinforced frame, thick spruce boards, and heavy-duty black steel hinges. Rubber draught seals and a sealed casing help block wind and rain, making it a dependable, clean-looking upgrade for everyday use.

Spruce Construction, Built to Last

The door’s 35×110mm strengthened spruce frame provides a solid foundation, with 18mm thick, 108mm wide spruce boards glued directly to the frame. Heavy-duty 800mm long, 4mm thick steel hinges in black finish are specified for load-bearing reliability over years of daily use. Rubber draught excluders seal against wind and water infiltration, while spruce casing with rubber sealants ensures a weathertight perimeter fit.

Specifications

Width

257.6 cm

Height

211.3 cm

Doors

Applications

Garage & Vehicle Protection

Safeguard your vehicles and equipment from the elements with our robust protection solutions. Whether you need a secure double garage, an open-sided carport, or a boat shelter, we have you covered. Our pre-cut garage kits allow for quick assembly, while our structural timber beams and cladding provide the strength and durability required for custom-built vehicle storage projects.

Why choose Garage Door SGD-2?

Robust Spruce Construction

The 35×110mm strengthened spruce frame forms a rigid structural backbone that resists warping and racking under regular use. Spruce boards measuring 18mm thick and 108mm wide are glued directly to the frame, eliminating movement and ensuring a tight, uniform surface over time.

Heavy-Duty Steel Hinge System

Four 800mm long, 4mm thick steel hinges in a black finish are specified to handle the load demands of a wide double-leaf door. The extended hinge length distributes stress across the full door height, reducing the risk of sagging or misalignment in long-term service.

Weathertight Sealing Throughout

Rubber draught excluders fitted between the door leaves and at the perimeter block wind-driven rain and air infiltration. The spruce casing is sealed with rubber sealants, providing a consistent weathertight fit that protects garage contents in exposed locations.

Visual Integration with Timber Garages

The chevron board pattern and natural spruce finish are designed to complement Dadsons timber garage structures aesthetically. The consistent material palette — spruce frame, spruce boards, spruce casing — ensures the door reads as a cohesive part of the overall building.

Frequently Asked Questions

The SGD-2 has an overall width of 2576mm and an overall height of 2113mm. The clear opening dimensions are 2396mm wide and 1988mm high.

The SGD-2 is constructed entirely from spruce. Spruce is recognized for its strength-to-weight ratio and dimensional stability in outdoor conditions.

The SGD-2 is an outward-opening double-leaf door.

The door is supplied with 800mm long, 4mm thick steel hinges finished in black, rubber draught excluders for wind and water resistance, and rubber sealants in the spruce casing.

Yes. The SGD-2 is designed to integrate with Dadsons timber garage structures and shares the same spruce material specification as the garage wall systems. It can also be fitted to compatible third-party timber garage openings where the rough opening dimensions align.

The SGD-2 is supplied in natural, unfinished spruce. Clients should apply their preferred timber treatment, stain, or paint to match project requirements or local climate conditions.
