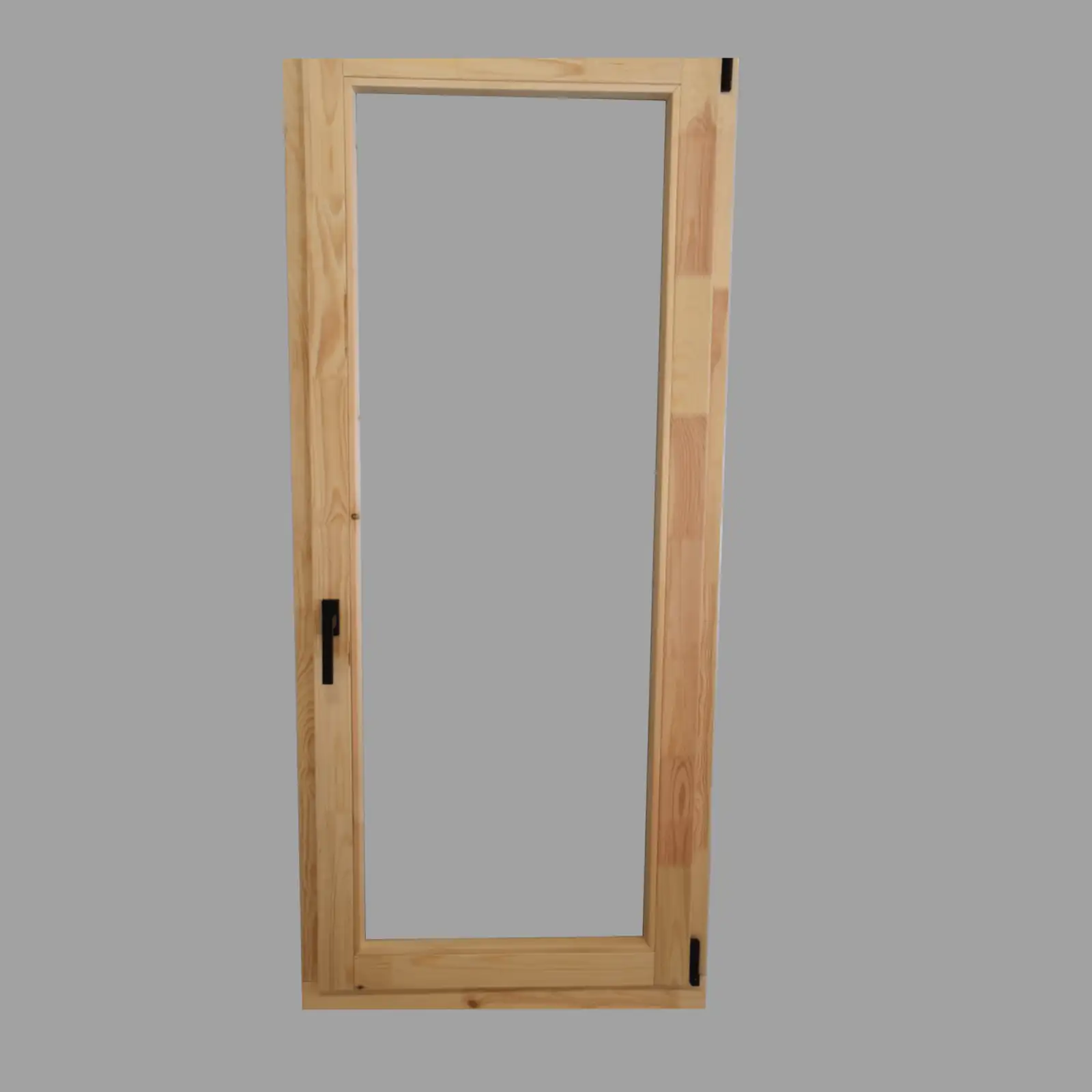

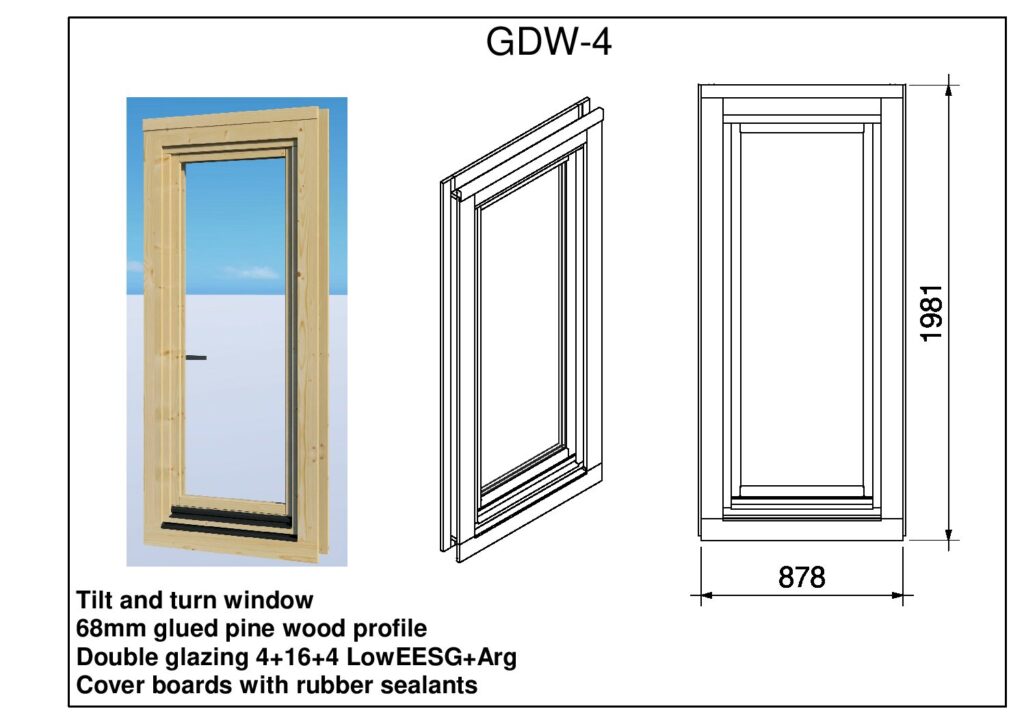

Premium Tilt-and-Turn Window GDW-4

High-performance 68mm glued pine window (878x1981mm) with double glazing and tilt-and-turn mechanism. Includes cover boards and professional rubber sealing.

Key specifications

878 x 1981 mm dimensions
68mm glued pine wood profile
Double glazing (4+16+4 LowE+Arg)
Tilt-and-turn opening mechanism
Includes cover boards and seals

Premium 68mm Pine Window System

The GDW-4 is a premium wooden window designed for durability and thermal efficiency. Constructed from a robust 68mm glued pine wood profile, this full-height window unit (878mm x 1981mm) combines traditional timber aesthetics with modern functionality.

Energy Efficient Design

Engineered for thermal performance, the GDW-4 features advanced double glazing (4mm glass + 16mm gap + 4mm glass) with Low-E coating and Argon gas filling. This 4+16+4 configuration significantly reduces heat transfer, maintaining comfortable interior temperatures year-round.

Functional & Secure

The high-quality tilt-and-turn mechanism offers versatile ventilation options—tilt the top for gentle airflow or swing the sash open for full access. The unit comes complete with cover boards and durable rubber sealants to ensure a weather-tight fit and superior protection against the elements.

Specifications

Height

198.1 cm

Length

87.8 cm

Windows

Applications

Renovation & Restoration

Breathe new life into existing structures with our high-quality renovation materials. Whether you are restoring a historic property, replacing worn siding, or upgrading a roof, our timber provides the authentic look and modern performance you need. We offer a wide range of profiles and dimensions to match existing work, ensuring a seamless finish for all your repair and improvement projects.

Windows, Doors & Architectural Joinery

Upgrade your property with high-performance operational elements. Our range of premium and standard windows and doors offers excellent thermal efficiency and aesthetic appeal for both new builds and renovations. Beyond the units themselves, we supply the specialized timber components needed for architectural joinery, allowing for custom fitting, frame construction, and the creation of unique entrances that make a lasting first impression.

Why choose Premium Tilt-and-Turn Window GDW-4?

Premium Pine Construction

Built from 68mm glued pine wood profile, offering superior dimensional stability and a high-quality natural finish.

Thermal Performance

Double-glazed unit (4+16+4) filled with Argon gas and Low-E coating minimizes heat loss and improves energy efficiency.

Versatile Opening

Tilt-and-turn hardware allows for secure ventilation (tilt) or easy cleaning and maximum airflow (turn).

Frequently Asked Questions

Yes, the product includes the 68mm glued pine profile frame, cover boards, and rubber sealants for installation.

Yes, it features a double-glazed unit (4mm glass, 16mm spacer, 4mm glass) with Low-E coating and Argon gas for enhanced insulation.

This model features a tilt-and-turn mechanism, allowing the window to tilt inwards for ventilation or swing open like a door.

With a height of 1981mm, this unit is suitable for use as a tall window or balcony-style access point.

The window is made from glued pine wood. We recommend applying a suitable wood preservative or paint upon installation to ensure longevity.
