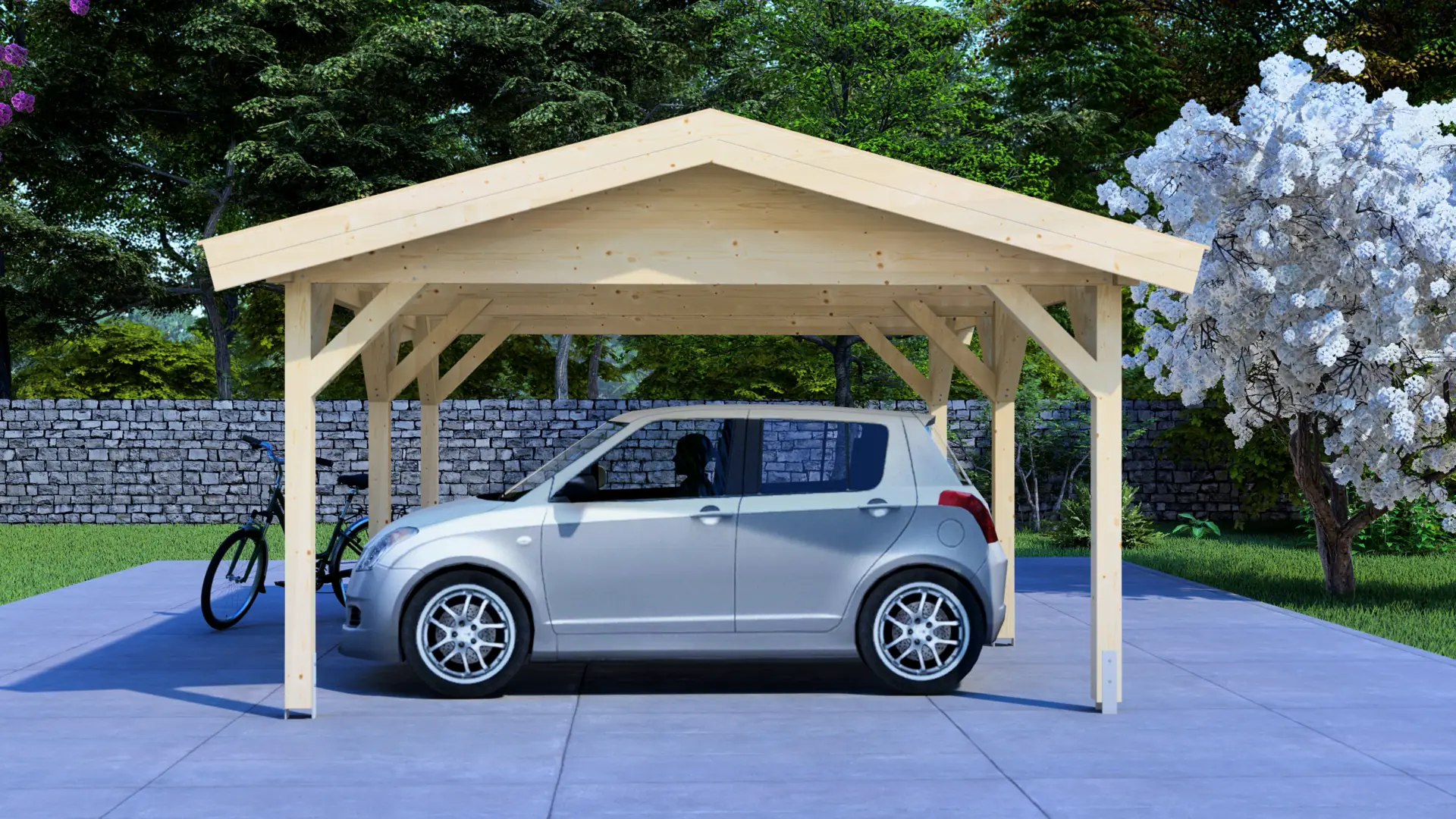

Carport Classic 5×4 Apex wooden structure with Nordic timber construction, manufactured by SIA Dadsons

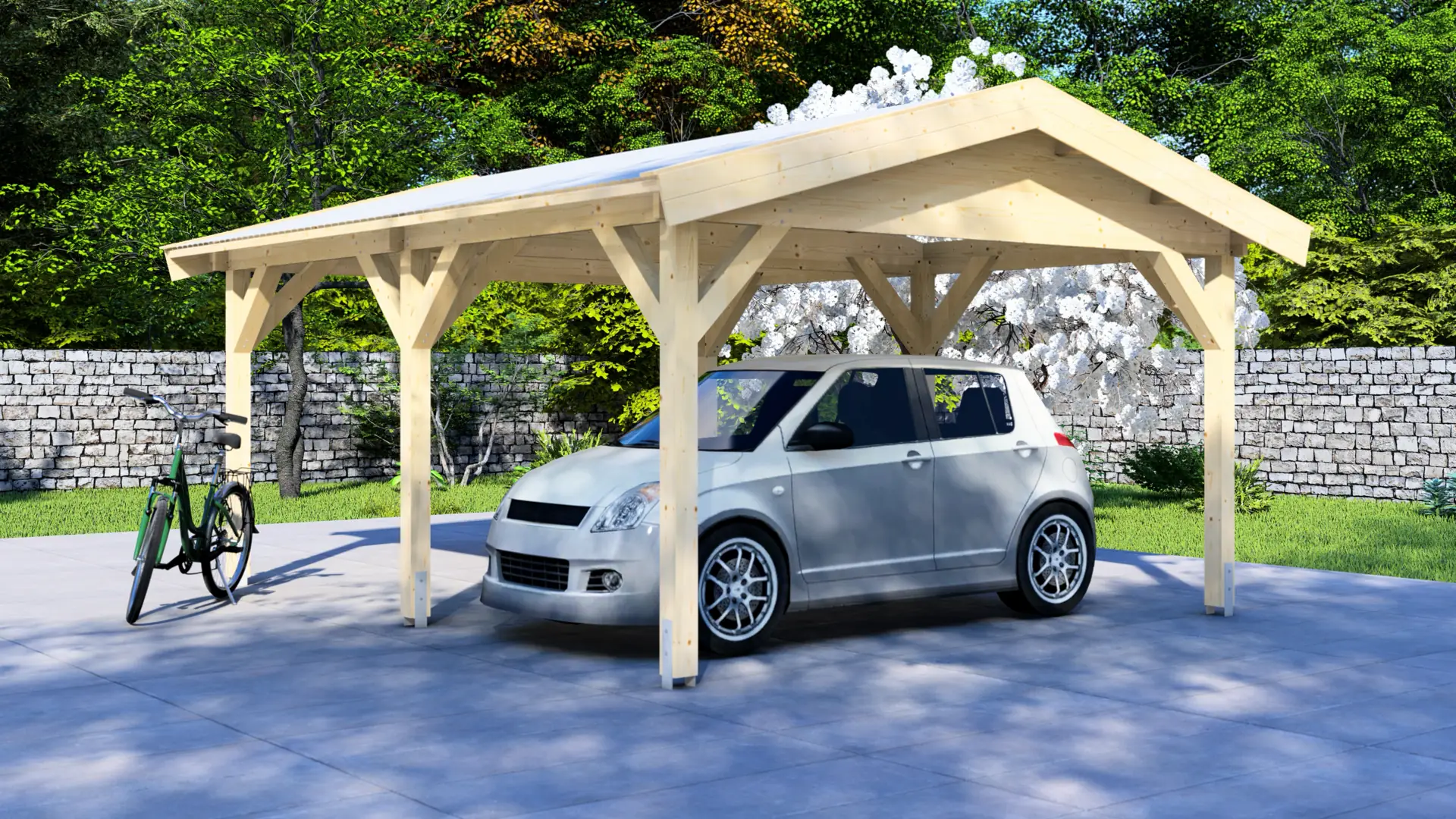

Carport Classic 5x4 Apex wooden structure with Nordic timber, manufactured by SIA Dadsons for garden or garage use

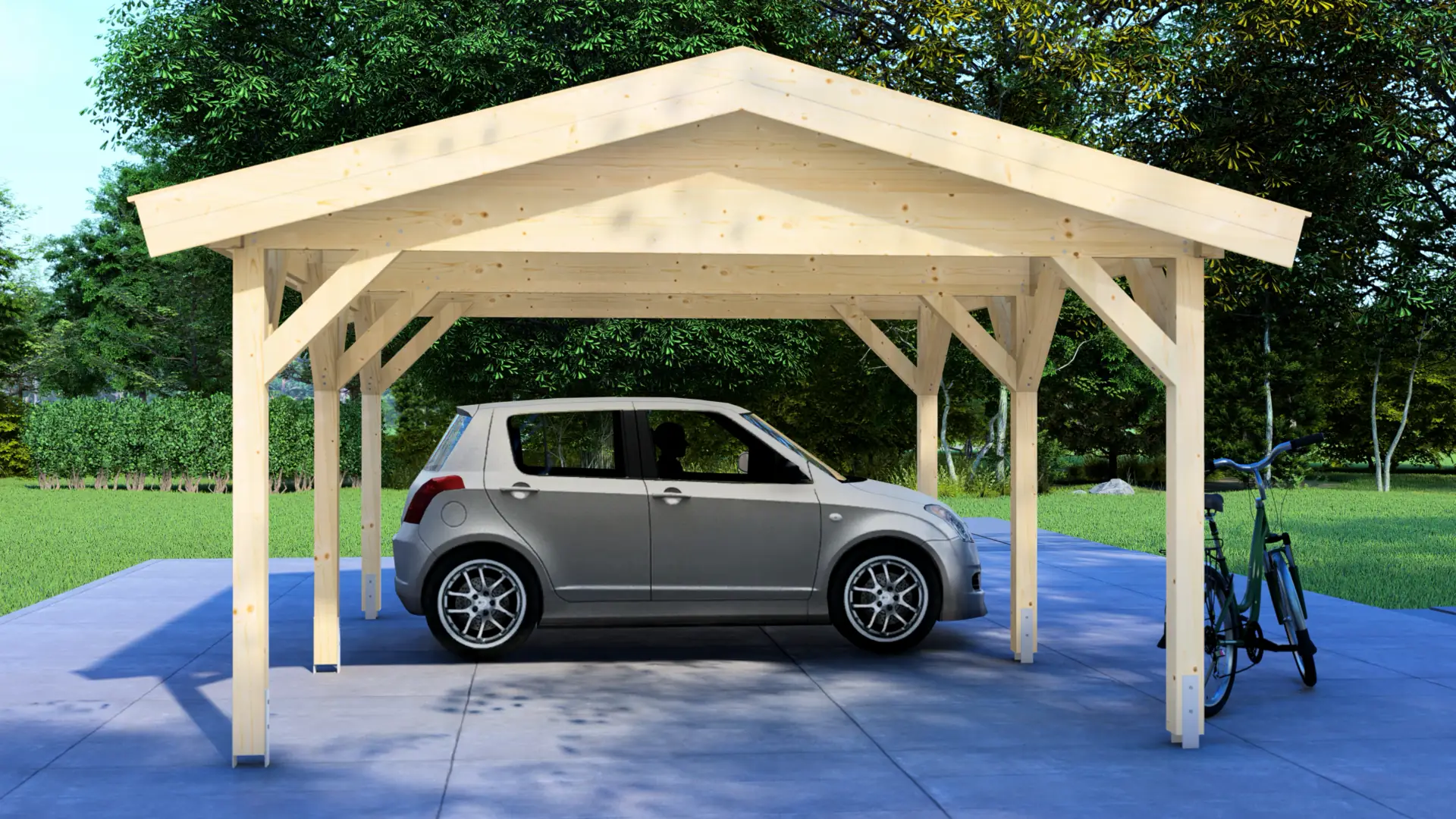

Carport Classic 5×4 Apex wooden structure with Nordic timber frame and roof, manufactured by SIA Dadsons

apex-roofcarportheavy-dutyopen-structuresingle-carport

Carport Classic 5×4 Apex

The Carport Classic 5×4 Apex provides reliable shelter for vehicles, equipment, and outdoor spaces. Built from premium Nordic spruce with a classic pitched roof design, it offers natural weather resistance and durability. This adaptable structure works as vehicle protection, covered workspace, outdoor seating area, storage solution, or entertainment space.

Key specifications

5,18 x 4,18m external footprint
120x120mm solid timber posts
Classic apex roof with 15° pitch
206.9 cm drive-through clearance
Premium 18mm roof boards

Mid-Sized 5×4 Metre Carport with Classic Apex Roof

Size & Framework

Measuring 5.18 metres long and 4.18 meters wide, this carport stands on six robust posts (120mm square), offering ample space for one standard car or several motorcycles and bicycles. The solid timber framework ensures long-lasting stability. Wooden brackets at each post provide additional strength and visual appeal.

Apex Roof Design

The apex roof features a traditional pitched profile at 15 degrees, covering approximately 26m² square metres of ground area. The twin-slope design channels rainwater efficiently to both sides, while the raised centre provides extra headroom. 2.07m is the internal clearance height at the eaves (where the roof meets the posts), and 2.86m is the total external height. Sturdy timber beams (44mm × 145mm) form the roof frame. Tongue-and-groove boards (18mm × 88mm) create a weathertight surface, with a ridge cover board protecting the apex. Edge boards (18mm) reinforce the perimeter.

How It’s Made

The entire carport is constructed from Nordic spruce timber with 44mm thick profiles throughout. This timber species is prized for its dense, tight grain structure that provides exceptional dimensional stability and natural resistance to moisture and decay. All components are precision-cut using advanced computerised cutting systems (CNC technology), guaranteeing exact dimensions. Every piece slots together with engineered accuracy. The tongue-and-groove roof boards interlock seamlessly to create a weathertight seal, while the substantial timber beams provide structural strength without excessive weight.

Delivery & Assembly

Supplied as a complete flat-pack kit in weatherproof packaging. Components are clearly marked with illustrated instructions for straightforward assembly using standard tools. Concrete foundation anchoring required..

Specifications

Width

418 cm

Height

285 cm

Length

518 cm

Area

22 m²

Applications

Garage & Vehicle Protection

Safeguard your vehicles and equipment from the elements with our robust protection solutions. Whether you need a secure double garage, an open-sided carport, or a boat shelter, we have you covered. Our pre-cut garage kits allow for quick assembly, while our structural timber beams and cladding provide the strength and durability required for custom-built vehicle storage projects.

Select DIY Projects & Self-Build

Storage & Utility

Keep your property organized and clutter-free with efficient storage solutions. Our range covers everything from compact garden sheds for tools to spacious logistical buildings. Use our sturdy structural timber to build custom shelving and heavy-duty storage units, or choose a ready-made wooden shed that combines practicality with aesthetic appeal to complement your garden design.

Why choose Carport Classic 5×4 Apex?

DIY-Friendly Design

Straightforward assembly process suitable for competent DIY enthusiasts with basic tools.

Effective Drainage

The 15-degree apex roof pitch ensures efficient water runoff, protecting both the structure and your vehicle.

Nordic Spruce Quality

Slow-grown timber with dense grain for superior durability and dimensional stability.

Frequently Asked Questions

This carport uses substantial 120x120mm timber posts for the main structural columns, ensuring high stability and load-bearing capacity.

The carport offers a clear drive-through height (eaves height) of 207cm, accommodating most standard vehicles and SUVs.

Yes, the kit includes 18mm thick roof boards (RB 18×88) and 18mm wind boards (WB 18mm) as part of the standard roof structure specification.

The technical design specifies the use of H-feet anchors (H-feet) secured into concrete foundations (Concrete C20/25) for secure ground attachment.
