Carport Classic 6x4 Apex wooden structure with Nordic timber construction, manufactured by SIA Dadsons

Carport Classic 6×4 Apex wooden structure with Nordic timber construction

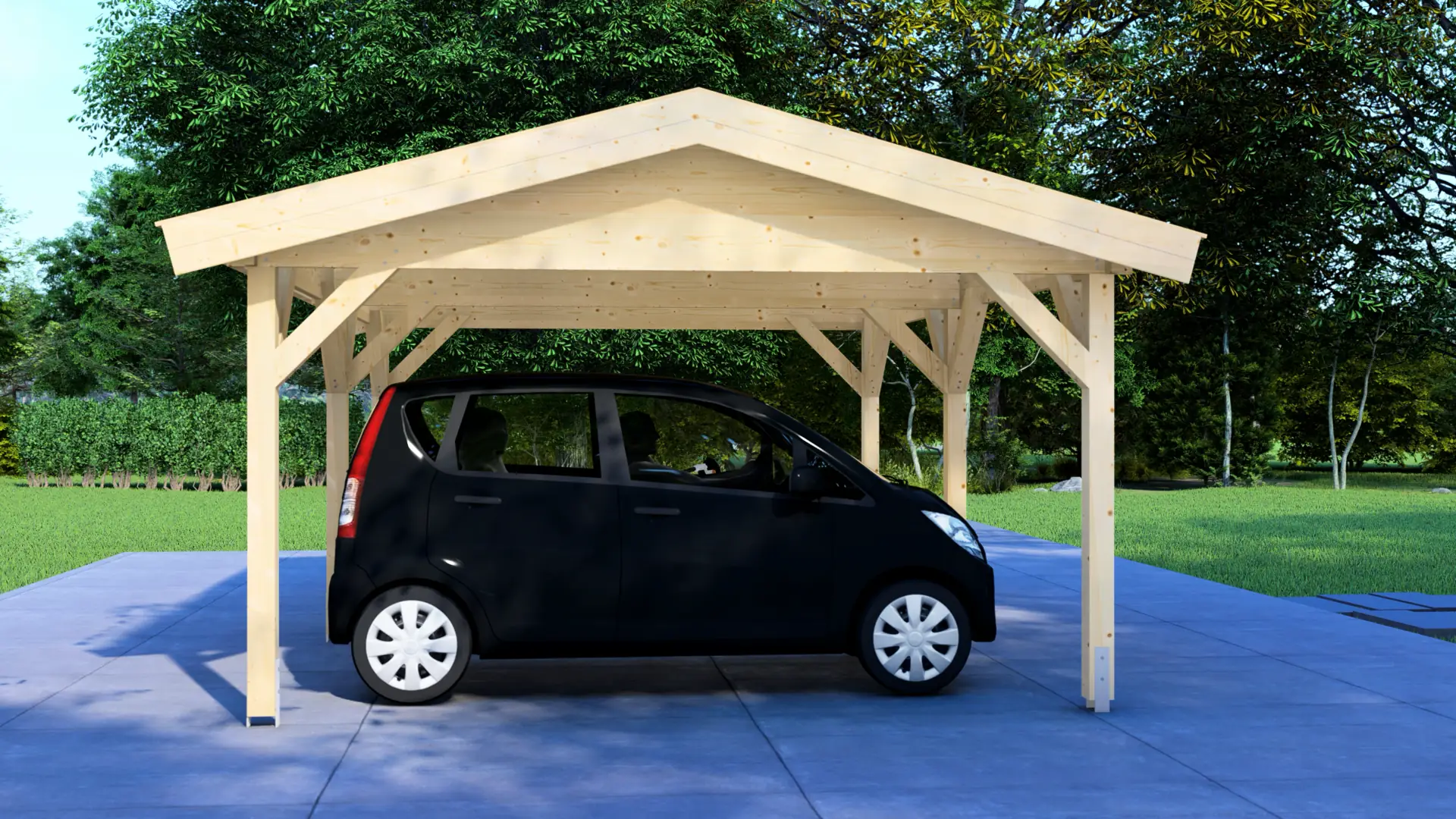

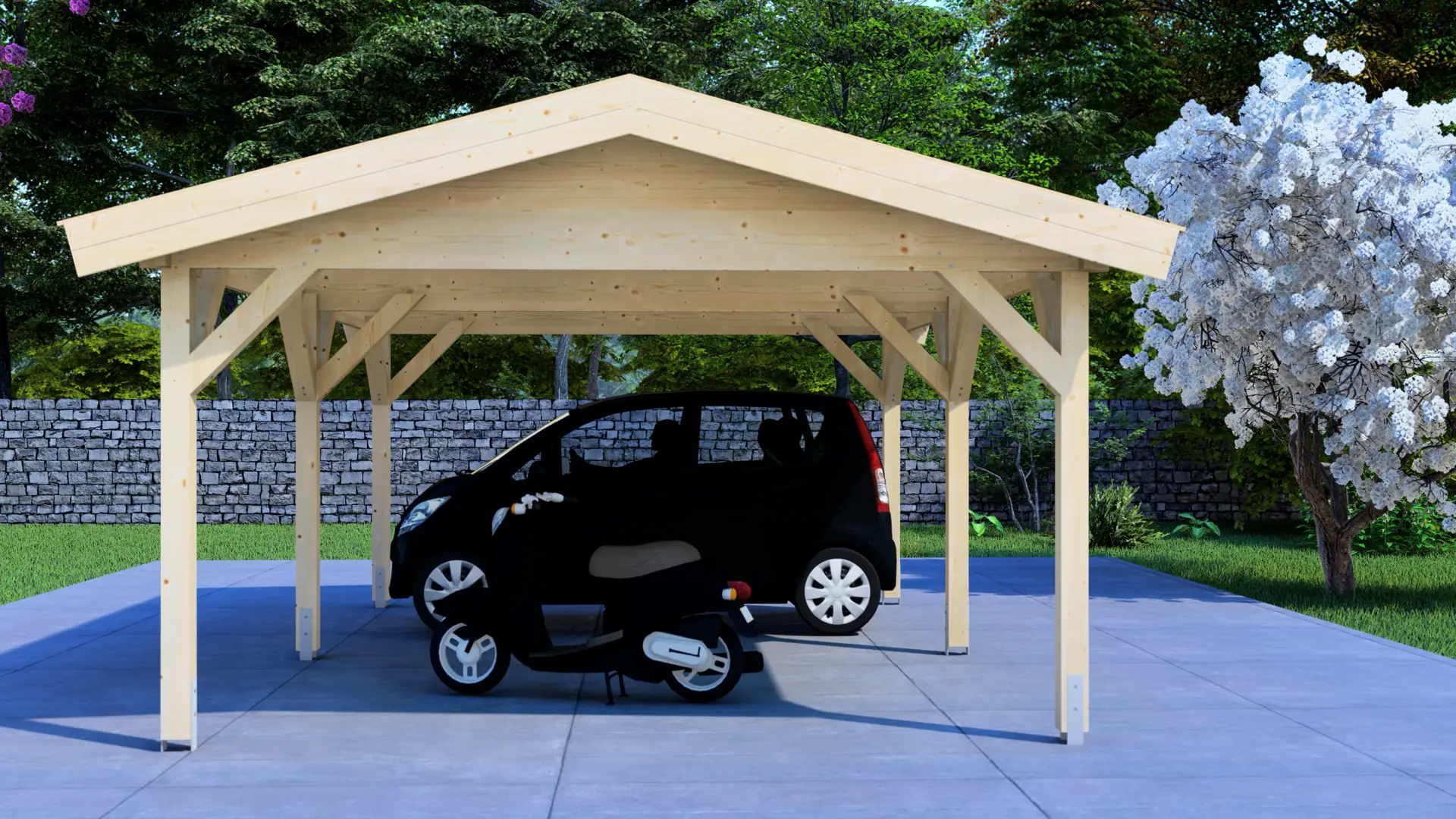

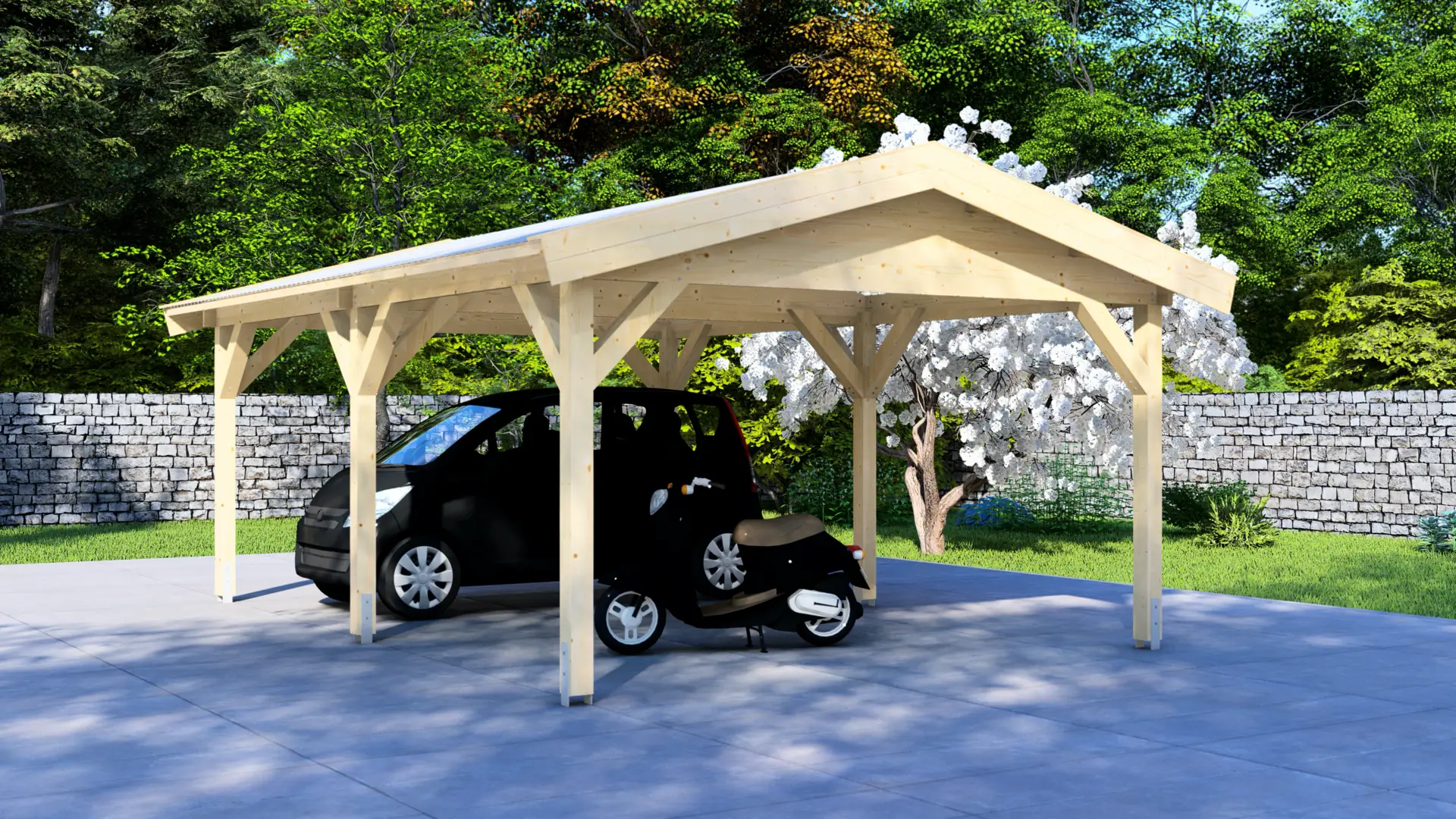

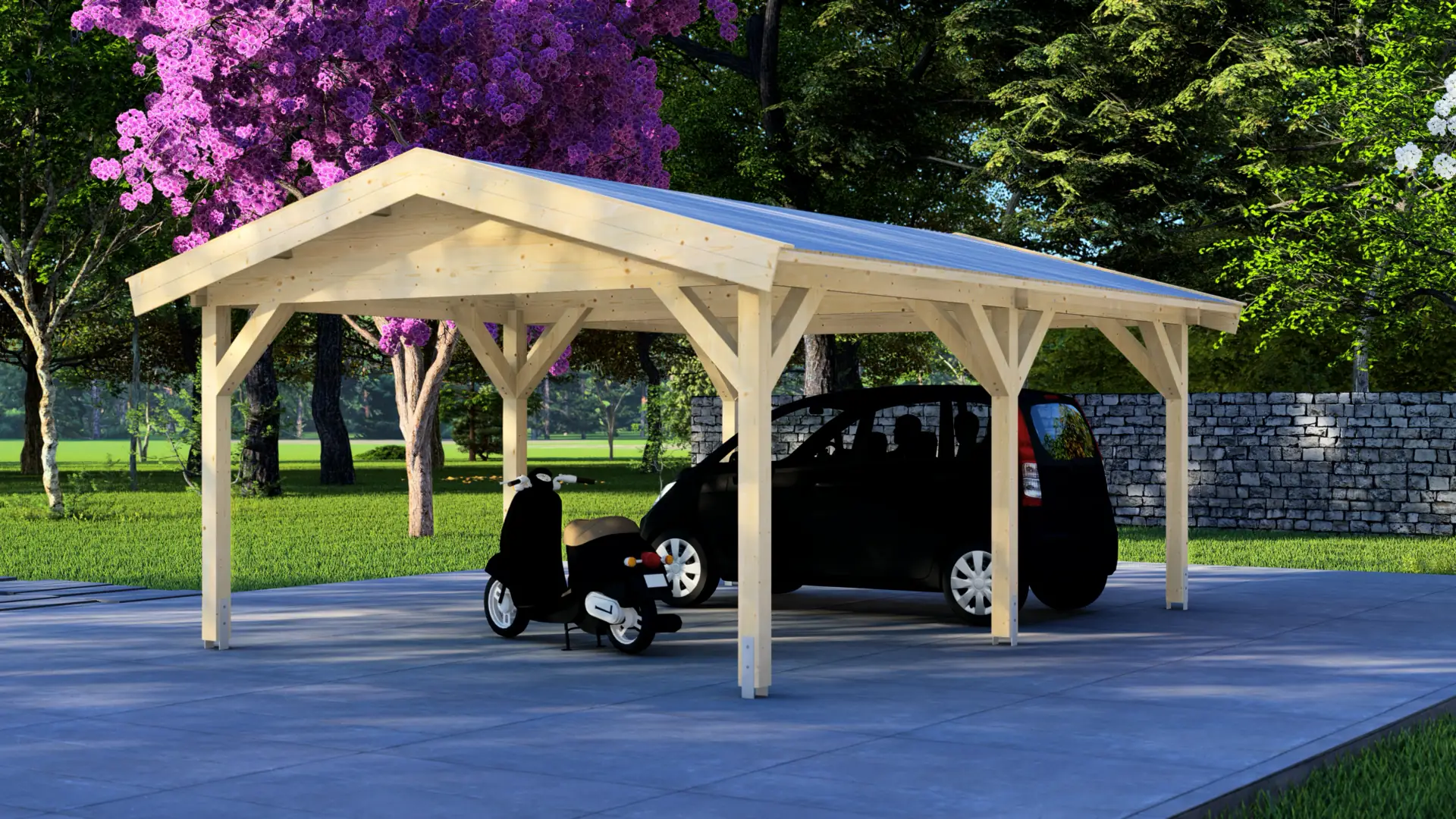

Carport Classic 6×4 Apex wooden structure made from Nordic timber, showing the apex roof design and sturdy construction

apex-roofflat-packopen-structurevehicle-storage

Carport Classic 6×4 Apex

The Carport Classic 6×4 Apex provides reliable shelter for vehicles, equipment, and outdoor spaces. It can serve as a vehicle protection, covered workspace, outdoor seating area, storage solution, or entertainment space. Built from premium Nordic spruce with a classic pitched roof design, it offers natural weather resistance and durability.

Key specifications

5.95 x 4.18m external post footprint
30m² total roof area
120x120mm solid structural posts
15° apex roof pitch
Nordic spruce construction

30m² Apex Roof Carport for One Car or Garden Use

Size & Framework

Measuring 5.95 metres long and 4.18 metres wide, this carport stands on six robust posts (120mm square), offering space for one standard car or several motorcycles and bicycles. The solid timber framework ensures long-lasting stability. Wooden brackets at each post provide additional strength and visual appeal.

Apex Roof

The apex roof features a traditional pitched profile at 15 degrees, covering approximately 30m² of ground area including overhangs. The twin-slope design channels rainwater efficiently to both sides. Height measures 2.07 metres at the entrances, rising to 2.86 metres at the centre peak. Sturdy timber beams (44mm × 145mm) form the roof frame. Tongue-and-groove boards (18mm × 88mm) create a weathertight surface, with a ridge cover board protecting the apex. Edge boards (18mm) reinforce the perimeter.

How It’s Made

The entire carport is constructed from Nordic spruce timber with 44mm thick profiles throughout. This timber species is prized for its dense, tight grain structure that provides exceptional dimensional stability and natural resistance to moisture and decay. All components are precision-cut using advanced computerised cutting systems (CNC technology), guaranteeing exact dimensions and eliminating the guesswork during assembly. Every piece slots together with engineered accuracy.

Delivery & Assembly

Supplied as a complete flat-pack kit in weatherproof packaging. Components are clearly marked with illustrated instructions for straightforward assembly using standard tools. Concrete foundation anchoring required..

Specifications

Width

418 cm

Length

595 cm

Area

24.8 m²

Applications

Alfresco Dining & Entertainment

Transform your garden into a culinary destination with our specialized dining and entertainment solutions. Our open canopies and spacious terrace houses provide the perfect setting for outdoor kitchens, BBQ areas, and dining sets. Protected from the sun and light rain yet open to the fresh air, these structures create an inviting atmosphere for hosting dinner parties, family gatherings, and summer celebrations.

Garage & Vehicle Protection

Safeguard your vehicles and equipment from the elements with our robust protection solutions. Whether you need a secure double garage, an open-sided carport, or a boat shelter, we have you covered. Our pre-cut garage kits allow for quick assembly, while our structural timber beams and cladding provide the strength and durability required for custom-built vehicle storage projects.

Storage & Utility

Keep your property organized and clutter-free with efficient storage solutions. Our range covers everything from compact garden sheds for tools to spacious logistical buildings. Use our sturdy structural timber to build custom shelving and heavy-duty storage units, or choose a ready-made wooden shed that combines practicality with aesthetic appeal to complement your garden design.

Why choose Carport Classic 6×4 Apex?

CNC-Precision Components

Every piece is accurately cut and clearly labeled for efficient, error-free assembly.

Weather Resistance

The 15° pitch apex roof with 44x145mm roof joists provides excellent drainage and structural load-bearing capacity.

Premium Materials

Manufactured from slow-grown Nordic spruce, known for its dense grain and long-term dimensional stability.

Frequently Asked Questions

A concrete foundation with a grade of C20/25 or higher is required. This is a standard structural concrete specification where C20/25 refers to the compressive strength of the concrete (20 N/mm² cube strength or 25 N/mm² cylinder strength). The foundation footings should be 500mm deep and 500mm wide for each post location, with the post extending approximately 264mm below ground level.

The kit includes 18mm roof boards and structural timbers. The final roof covering (bitumen, shingles, or metal) is selected by the client separately to match their requirements.

The kit includes MF screws measuring 8mm in diameter and 50mm in length for anchoring the posts to the concrete foundation. These Multi-Fix screws are used to secure each wooden post to the prepared concrete base.

Yes, the open layout and high clearance make it suitable as a covered outdoor dining area, workshop, or general equipment storage.

The structure is delivered as a knock-down kit, securely packed in moisture-resistant plastic foil, ready for assembly.
