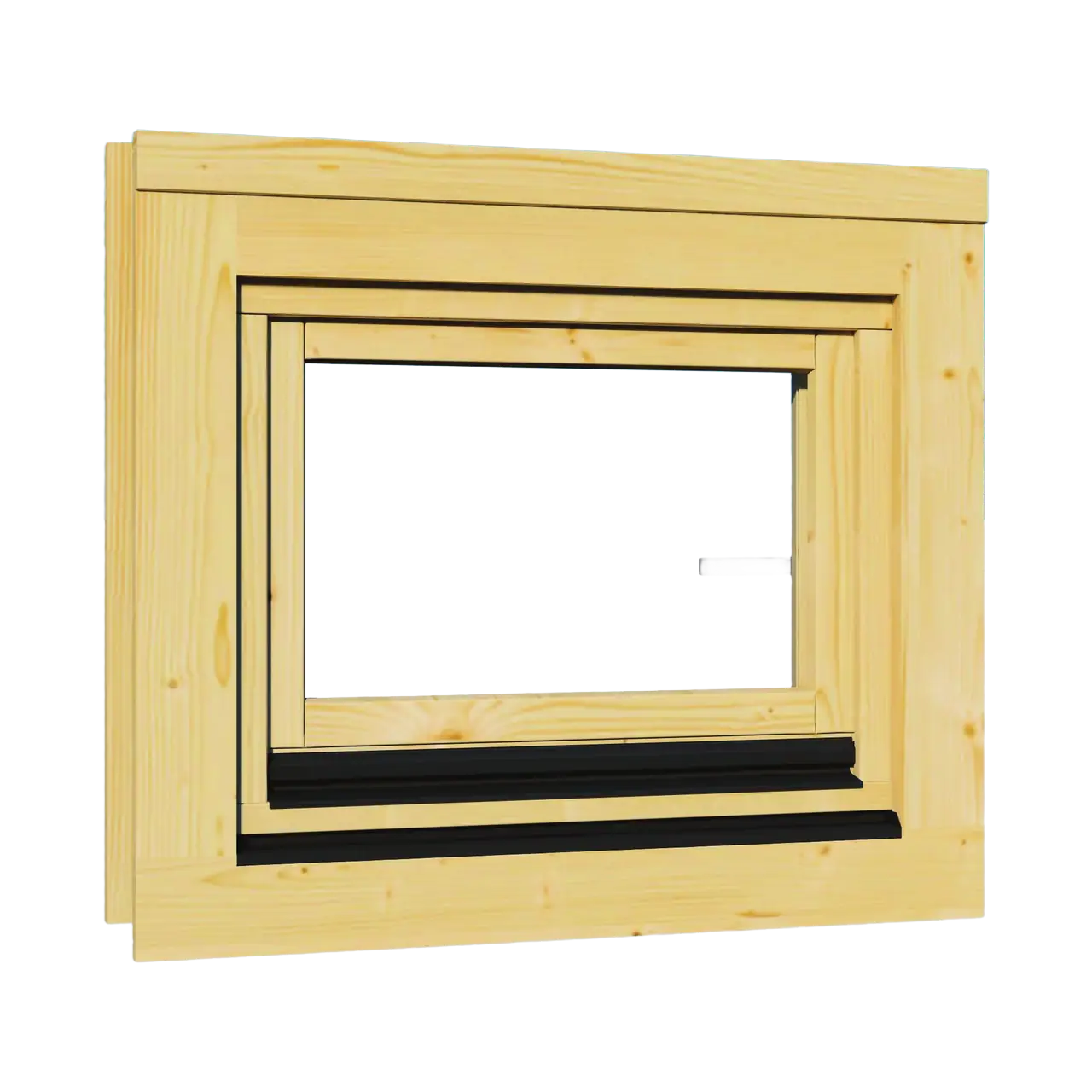

Premium Window GW-3

Premium 878×766mm laminated pine tilt-and-turn window with double glazing. Strong thermal performance in timber buildings.

Key specifications

Overall size: 878 × 766 mm
Clear opening: 618 × 416 mm
68mm finger-jointed laminated pine frame
4+16+4 LowE ESG+Argon double glazing, U-value 1.1
MACO tilt-and-turn mechanism, opens inward

Premium Tilt-and-Turn Timber Window for Garden Buildings

The GW-3 is a premium tilt-and-turn timber window made for garden houses, summerhouses, and log cabin structures that require reliable thermal performance and weather resistance. Built from a 68mm finger-jointed and laminated pine profile, this window delivers superior structural rigidity and long-term dimensional stability.

Engineered for Performance and Longevity

The two 4mm tempered glass panes are separated by a 16mm cavity (4+16+4) filled with Argon gas, which provides better insulation than air. One pane features a microscopically thin coating that reflects heat, enhancing energy efficiency by reducing thermal transfer (LowE). The silicone sealant ensures the unit remains airtight and watertight throughout its life. Overall, the composition achieves a U-value of 1.1.

Premium Hardware and Weather Sealing

The tilt-and-turn mechanism is supplied by MACO, a recognised European hardware brand. The window opens inward. A thermal rain protection rail (GTR 22.44 K), rubber draught excluders, and a black metal sill combine to create a comprehensive weather barrier, protecting both the window unit and the surrounding timber casing against wind and water ingress.

Compatible with Dadsons Timber Buildings

The GW-3 is designed as a compatible accessory for Dadsons log cabin structures. The spruce casing with rubber sealants ensures a snug, draught-free fit into log wall openings. Delivered as part of a flat-pack building kit or as a standalone component.

Specifications

Width

87.7 cm

Height

76.6 cm

Applications

Garden Retreat & Outdoor Living

Enhance your lifestyle by extending your living area into nature. Create a serene sanctuary for relaxation, reading, or yoga with our garden structures. Our durable timber decking, pergolas, and summer houses transform your garden into a functional outdoor living room. Experience the tranquility of natural wood and create a dedicated space for leisure and family enjoyment.

Guest Accommodation & Hospitality

Expand your living space and welcome visitors in style with high-quality guest accommodation. From cozy backyard cabins for family visits to premium holiday rental units for Airbnb, we provide the essential foundation. Our complete wooden houses offer turnkey convenience, while our structural timber ensures robust frameworks for custom hospitality projects and extensions.

Home Office & Creative Studio

Create the perfect productive environment just steps from your home. Whether you need a distraction-free home office, an inspiring art studio, or a craft workshop, our solutions offer the ideal space. Choose from our range of ready-made garden buildings or utilize our premium timber materials to construct a bespoke workspace designed for year-round comfort and professional focus.

Wellness & Sauna

Embrace the health benefits of authentic Nordic wellness right in your own backyard. Our timber products are at the heart of the traditional sauna experience. We offer complete barrel sauna kits for immediate relaxation, as well as specialized thermo-treated wood and cladding for building custom spa facilities. Create a personal wellness retreat that rejuvenates both body and mind.

Windows, Doors & Architectural Joinery

Upgrade your property with high-performance operational elements. Our range of premium and standard windows and doors offers excellent thermal efficiency and aesthetic appeal for both new builds and renovations. Beyond the units themselves, we supply the specialized timber components needed for architectural joinery, allowing for custom fitting, frame construction, and the creation of unique entrances that make a lasting first impression.

Why choose Premium Window GW-3?

High-Performance Double Glazing

The 4+16+4 LowE ESG+Argon double glazing unit achieves a U-value of 1.1, significantly reducing heat loss through the window. This makes the GW-2 suitable for use in insulated garden buildings intended for year-round occupation.

MACO Tilt-and-Turn Mechanism

Fitted with a MACO brand tilt-and-turn mechanism, the GW-2 opens fully inward for easy cleaning or tilts at the top for controlled ventilation.

68mm Finger-Jointed Laminated Pine Frame

The 68mm profile is constructed from finger-jointed and laminated pine. Dimensional stability and resistance to warping and checking. The layered construction reduces movement caused by seasonal humidity changes, maintaining a reliable seal over time.

Precision Fit for Timber Structures

The GW-3 is designed for clean integration into Dadsons log cabin and garden house kits. The spruce casing ensures visual continuity with surrounding timber walls, delivering a finished, professional appearance.

Frequently Asked Questions

The GW-3 has an overall frame size of 878mm wide by 766mm tall. The clear glazed opening measures 618mm wide by 416mm tall.

The GW-3 is fitted with 4+16+4 LowE ESG+Argon double glazing, achieving a U-value of 1.1.

The MACO tilt-and-turn mechanism allows the window to open in two modes: tilting inward at the top, or swinging fully inward on a side hinge.

Yes. The GW-3 is designed to integrate with Dadsons timber building systems. The spruce casing with rubber sealants ensures a secure, draught-free fit within log wall openings. It is available as part of a complete building kit or as a standalone accessory.

The GW-3 features a thermal rain protection rail (GTR 22.44 K), rubber draught excluders for wind and water resistance, a black metal sill to protect the wood casing, and silicone-sealed glazing. Together these components create a robust barrier against the elements.

Wood is a natural material and its grain, colour, and texture vary between individual pieces. The product images are illustrative. The finished appearance will reflect the natural character of the pine, which may differ slightly from the photographs shown.

The GW-3 is a standard catalogue product with fixed dimensions of 878×766mm overall. For custom sizing requirements, please contact Dadsons directly to discuss available options for your project.
