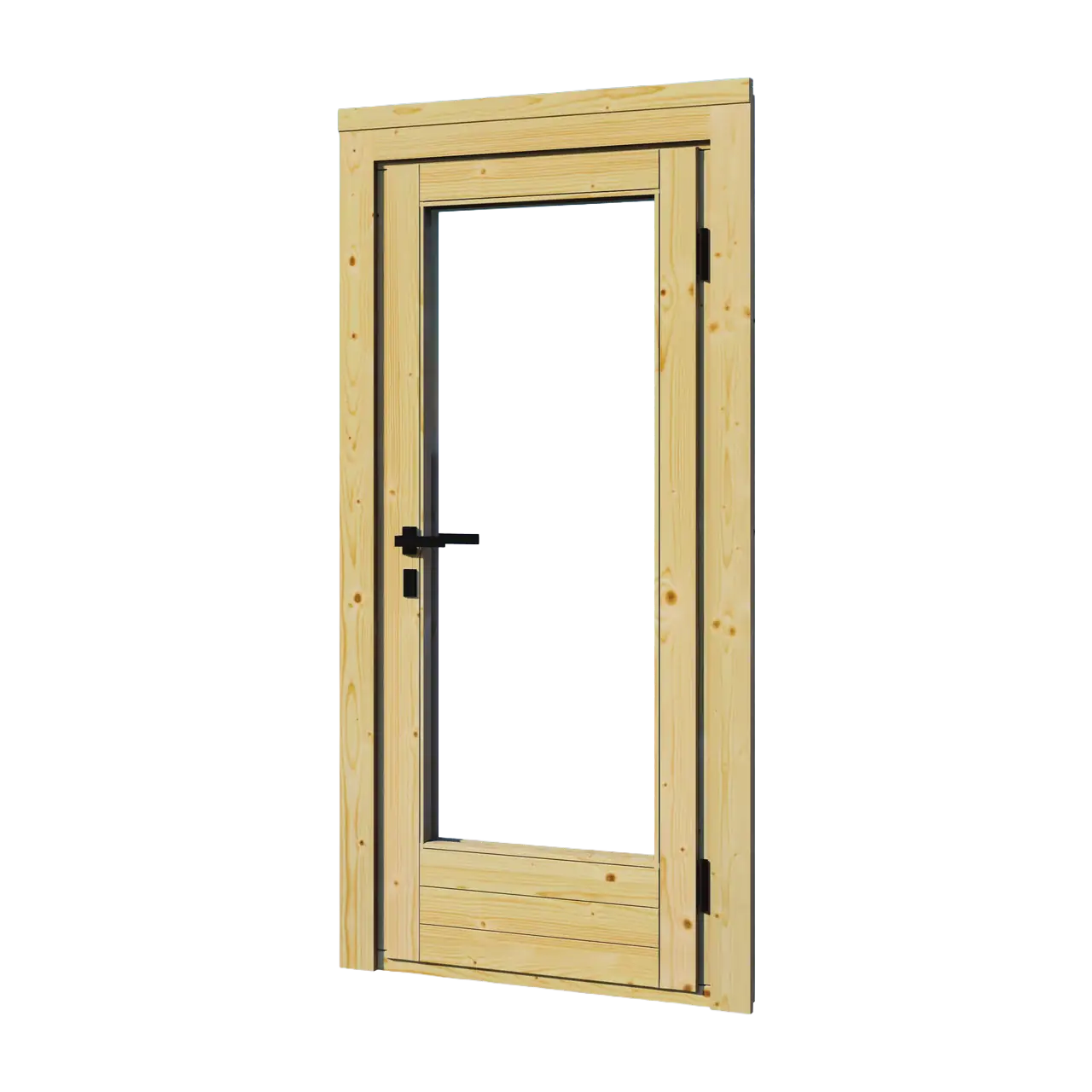

Premium Single Door GD-3

Premium 68mm pine single door with a 3-point lock and insulated double glazing. Made for timber garden buildings across Europe.

Key specifications

68mm finger-jointed laminated pine profile
External frame: 1054 x 2072 mm
Clear opening: 708 x 1826 mm
Double glazing 4+16+4 LowE ESG+Arg, U-value 1.1
Outward opening with rubber draught excluders

Premium Glazed Pine Door

The GD-3 is a premium single external door made specifically for timber garden buildings, log cabins, summerhouses, and garden offices. Constructed from finger-jointed and laminated pine with a 68mm profile, this door delivers exceptional structural rigidity and long-term dimensional stability in demanding outdoor conditions.

Professional-Grade Security and Performance

The GD-3 features a high-quality MACO 3-point locking system, paired with adjustable MACO hinges for accurate alignment and reliable long-term use. It opens outward and includes rubber draught seals to block wind and rain, making it a strong option for year-round installations.

Thermal Efficiency

The double glazing provides excellent thermal performance while keeping the interior bright. Two 4mm tempered glass panes are separated by a 16mm cavity (4+16+4) filled with argon gas, which insulates better than air. One pane has a thin Low-E coating that reflects heat to reduce thermal transfer and improve energy efficiency. Silicone sealing, plus a spruce casing with rubber gaskets, improves weathertightness and helps minimize heat loss around the door. Overall, the assembly achieves a U-value of 1.1.

Ready for Professional Installation

Supplied with an aluminium threshold strip for protection and a fully finished spruce casing, the GD-3 integrates seamlessly into Dadsons’ range of timber structures. With an external frame width of 1054mm and height of 2072mm, it suits a wide range of standard cabin openings. All components are delivered ready for straightforward on-site fitting.

Specifications

Width

105.4 cm

Height

207.2 cm

Doors

Applications

Garden Retreat & Outdoor Living

Enhance your lifestyle by extending your living area into nature. Create a serene sanctuary for relaxation, reading, or yoga with our garden structures. Our durable timber decking, pergolas, and summer houses transform your garden into a functional outdoor living room. Experience the tranquility of natural wood and create a dedicated space for leisure and family enjoyment.

Guest Accommodation & Hospitality

Expand your living space and welcome visitors in style with high-quality guest accommodation. From cozy backyard cabins for family visits to premium holiday rental units for Airbnb, we provide the essential foundation. Our complete wooden houses offer turnkey convenience, while our structural timber ensures robust frameworks for custom hospitality projects and extensions.

Home Office & Creative Studio

Create the perfect productive environment just steps from your home. Whether you need a distraction-free home office, an inspiring art studio, or a craft workshop, our solutions offer the ideal space. Choose from our range of ready-made garden buildings or utilize our premium timber materials to construct a bespoke workspace designed for year-round comfort and professional focus.

Storage & Utility

Keep your property organized and clutter-free with efficient storage solutions. Our range covers everything from compact garden sheds for tools to spacious logistical buildings. Use our sturdy structural timber to build custom shelving and heavy-duty storage units, or choose a ready-made wooden shed that combines practicality with aesthetic appeal to complement your garden design.

Windows, Doors & Architectural Joinery

Upgrade your property with high-performance operational elements. Our range of premium and standard windows and doors offers excellent thermal efficiency and aesthetic appeal for both new builds and renovations. Beyond the units themselves, we supply the specialized timber components needed for architectural joinery, allowing for custom fitting, frame construction, and the creation of unique entrances that make a lasting first impression.

Workshops & Hobby Rooms

Dedicate a robust space to your passions with our heavy-duty workshop solutions. Whether you are into woodworking, mechanics, or pottery, our "Active" line of garages and reinforced cabins offers the strength and space you need. With solid floors, thick walls for tool mounting, and ample room for workbenches, these buildings provide a secure and durable environment for all your hands-on projects and loud machinery.

Why choose Premium Single Door GD-3?

3-Point Security Locking

The GD-3 is fitted with a high-quality 3-point lock from MACO, a trusted European hardware manufacturer. This multi-point locking system distributes clamping force evenly across the door frame, enhancing both security and weathertightness under load.

68mm Laminated Pine Construction

Finger-jointed and laminated pine construction at 68mm profile depth delivers superior strength and resistance to warping compared to solid sawn timber.

Adjustable Hinges

Adjustable hinges from MACO allow for precise three-dimensional alignment during and after installation. This is particularly valuable for timber structures that undergo natural settling, ensuring the door continues to close and seal correctly over time.

Full Weatherproofing Package

Rubber draught excluders provide a tight seal against wind and water infiltration, while an aluminium strip protects the threshold from wear and moisture. The spruce casing with rubber sealants completes a fully weatherproofed installation-ready unit.

Frequently Asked Questions

The GD-3 has an external frame width of 1054mm and a height of 2072mm. The clear door leaf opening measures 708mm wide by 1826mm tall.

The GD-3 features a 4+16+4mm double-glazed unit using LowE tempered glass with Argon fill, achieving a U-value of 1.1. The unit is sealed with silicone sealant.

The GD-3 is an outward opening door.

The GD-3 is supplied with a high-quality 3-point locking system from MACO, a leading European hardware manufacturer. Multi-point locking provides enhanced security and improved door-to-frame compression.

Yes. The GD-3 can be installed in Dadsons log cabins and other timber buildings. The 68mm profile is matched to premium wall thickness options and the spruce casing ensures visual consistency.

The GD-3 features a 68mm profile constructed from finger-jointed and laminated pine wood, providing structural rigidity and resistance to seasonal movement in outdoor environments.

Yes. An aluminium strip is included for threshold protection, guarding against wear and moisture ingress at the base of the door — an important detail for external doors exposed to the elements.

Dadsons offers a range of windows and doors designed to complement their timber building systems. For custom sizing or finish requirements, please submit an enquiry and our team will advise on available options for your project.

Quality Materials Inside

Sawn Timber: Pine and Spruce for Construction

Discover our high-quality sawn timber from pine and spruce, ideal for construction with natural moisture, eco-friendly properties, and versatile sizing options.

Glued (Laminated) Wooden Beams and Boards

Discover glued wooden beams and boards made from pine and spruce, offering high moisture resistance, load capacity, and splinter-free handling for furniture, stairs, and windows.

Solid Glued (Laminated) Spruce Panels

High-quality solid glued panels made from premium spruce, available in various thicknesses, lengths, and widths, with hand-planed and sorted finishes for superior quality.

BS 2482:2009 Certified Scaffold Boards

Compliant with BS 2482:2009, our scaffolding boards feature metal plate clamping and come in multiple sizes for versatile construction applications.

Sawn Timber: Pine and Spruce for Construction

Discover our high-quality sawn timber from pine and spruce, ideal for construction with natural moisture, eco-friendly properties, and versatile sizing options.

Glued (Laminated) Wooden Beams and Boards

Discover glued wooden beams and boards made from pine and spruce, offering high moisture resistance, load capacity, and splinter-free handling for furniture, stairs, and windows.

Solid Glued (Laminated) Spruce Panels

High-quality solid glued panels made from premium spruce, available in various thicknesses, lengths, and widths, with hand-planed and sorted finishes for superior quality.

BS 2482:2009 Certified Scaffold Boards

Compliant with BS 2482:2009, our scaffolding boards feature metal plate clamping and come in multiple sizes for versatile construction applications.

Other Wooden Houses

Windows & Doors

Fixed Vitrine Window SFW-1

Premium fixed timber window unit (886 x 1281 mm) featuring 4-16-4 double glazing. Designed for vertical installation to maximize natural light in wooden garden buildings.

Windows & Doors

Standard Double Door SDD-1

Premium spruce double door (1416 x 2043 mm) designed for 44mm log structures. Features classic wooden construction and durable hardware.

Windows & Doors

Door GD-1

Premium wooden door (1290 x 2072 mm) manufactured from Nordic spruce. Features a robust frame design and high-quality hardware for secure garden building access.

Windows & Doors

Single Window SW-3

Timber casement window SW-3 in 45mm spruce profile with double glazing 4+6+4. 571 × 1551 mm, top-hung opening, rubber draught excluders, and adjustable hinges for precision fitting.

Windows & Doors

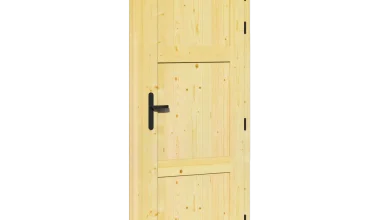

Single Door SD-2

Solid spruce single door with 45mm profile, laminated anti-warp construction, rubber draught seals, and adjustable hinges. Engineered for timber garden buildings.

Windows & Doors

Fixed Window SFW-5

Spruce fixed window SFW-5, 886 x 1956mm with 45mm profile and double glazing. Compatible with Dadsons timber structures. Request a trade quote.

Windows & Doors

Double Door SDD-3 Low

Solid spruce double door with 45mm profile, double glazing, and adjustable hinges. 1416 x 1863mm overall frame. Outward opening with weather seals.

Windows & Doors

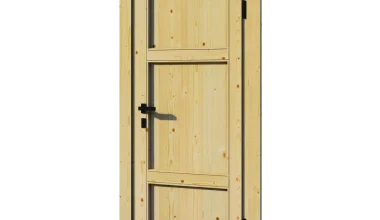

Premium Single Door GD-2
