Premium GDW-3 wooden window with Nordic timber frame, ideal for garden houses and summer houses

68mm-profiledouble-glazedinsulatedtilt-and-turn

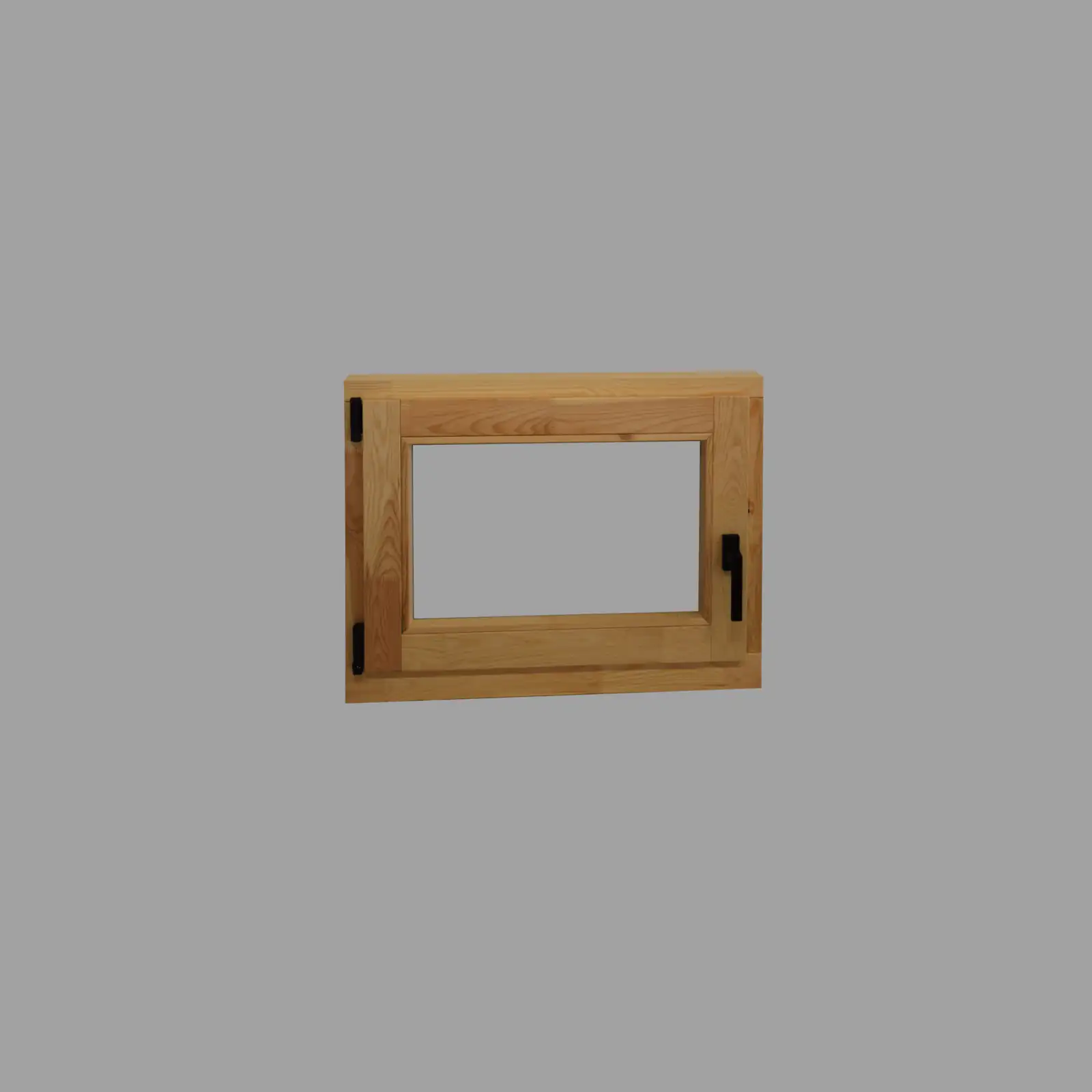

Premium Window GDW-3

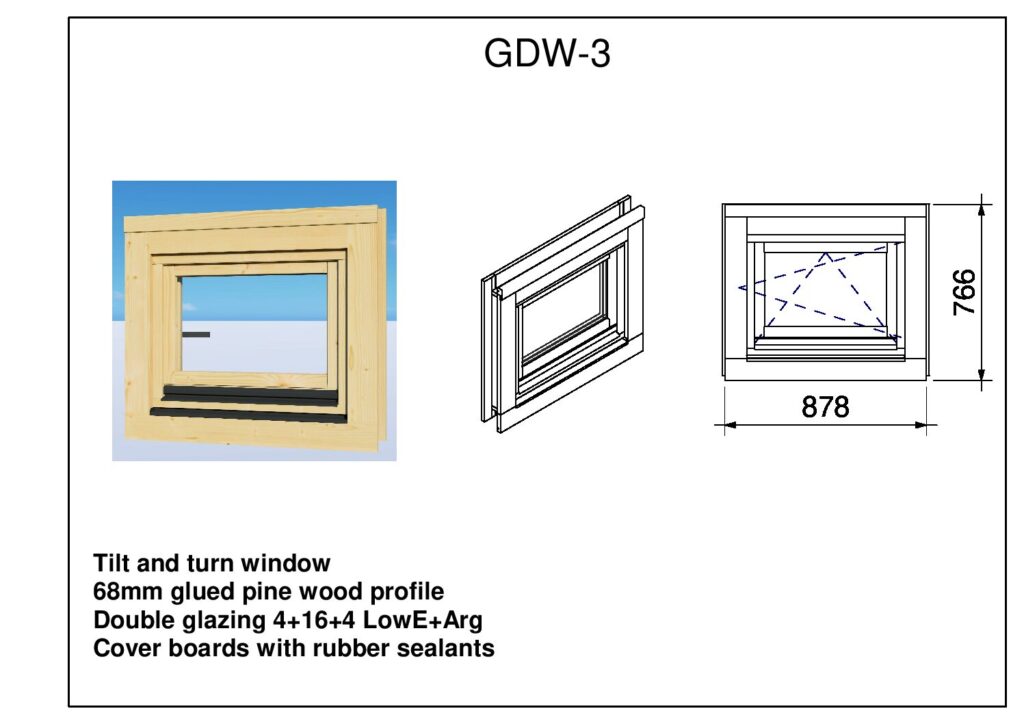

High-specification 68mm glued pine tilt-and-turn window (878x766mm). Features double glazing and integrated rubber sealants for superior insulation.

Key specifications

878 x 766 mm dimensions
68mm glued pine wood profile
Tilt and turn mechanism
Double glazing (4+16+4 LowE+Arg)
Includes cover boards and rubber sealants

68mm Profile Glued Pine Window System

The GDW-3 is a premium wooden window unit designed for durability and thermal efficiency in modern timber construction. Manufactured from 68mm glued pine wood profiles, this unit ensures structural stability and resistance to warping, making it an ideal choice for residential and garden building applications.

Advanced Thermal Performance

This model features a high-performance double-glazing package composed of a 4+16+4 configuration. The unit utilizes Low-E (Low Emissivity) glass combined with Argon gas filling in the 16mm gap to significantly reduce heat transfer. The inclusion of cover boards with rubber sealants further enhances weather resistance and airtightness.

Functional Design

Engineered with a tilt-and-turn opening mechanism, the GDW-3 offers versatile ventilation options while maintaining security. The 878mm x 766mm dimensions fit standard openings, providing a balance of natural light and privacy.

Specifications

Width

87.8 cm

Height

76.6 cm

Windows

Applications

Renovation & Restoration

Breathe new life into existing structures with our high-quality renovation materials. Whether you are restoring a historic property, replacing worn siding, or upgrading a roof, our timber provides the authentic look and modern performance you need. We offer a wide range of profiles and dimensions to match existing work, ensuring a seamless finish for all your repair and improvement projects.

Windows, Doors & Architectural Joinery

Upgrade your property with high-performance operational elements. Our range of premium and standard windows and doors offers excellent thermal efficiency and aesthetic appeal for both new builds and renovations. Beyond the units themselves, we supply the specialized timber components needed for architectural joinery, allowing for custom fitting, frame construction, and the creation of unique entrances that make a lasting first impression.

Why choose Premium Window GDW-3?

Optimized Insulation

Equipped with 4+16+4 LowE+Argon double glazing to minimize thermal loss and improve energy efficiency.

Structural Stability

Constructed from 68mm glued pine wood profile to prevent twisting and ensure long-term durability.

Weather Protection

Factory-fitted cover boards and rubber sealants provide a secure barrier against wind and moisture ingress.

Frequently Asked Questions

The window uses a 4+16+4 construction: 4mm glass, 16mm Argon-filled spacer, and 4mm Low-E glass.

The frame is manufactured from a 68mm glued pine wood profile.

Yes, the GDW-3 features a tilt-and-turn mechanism for flexible ventilation.

Yes, the unit comes with cover boards and rubber sealants included.
