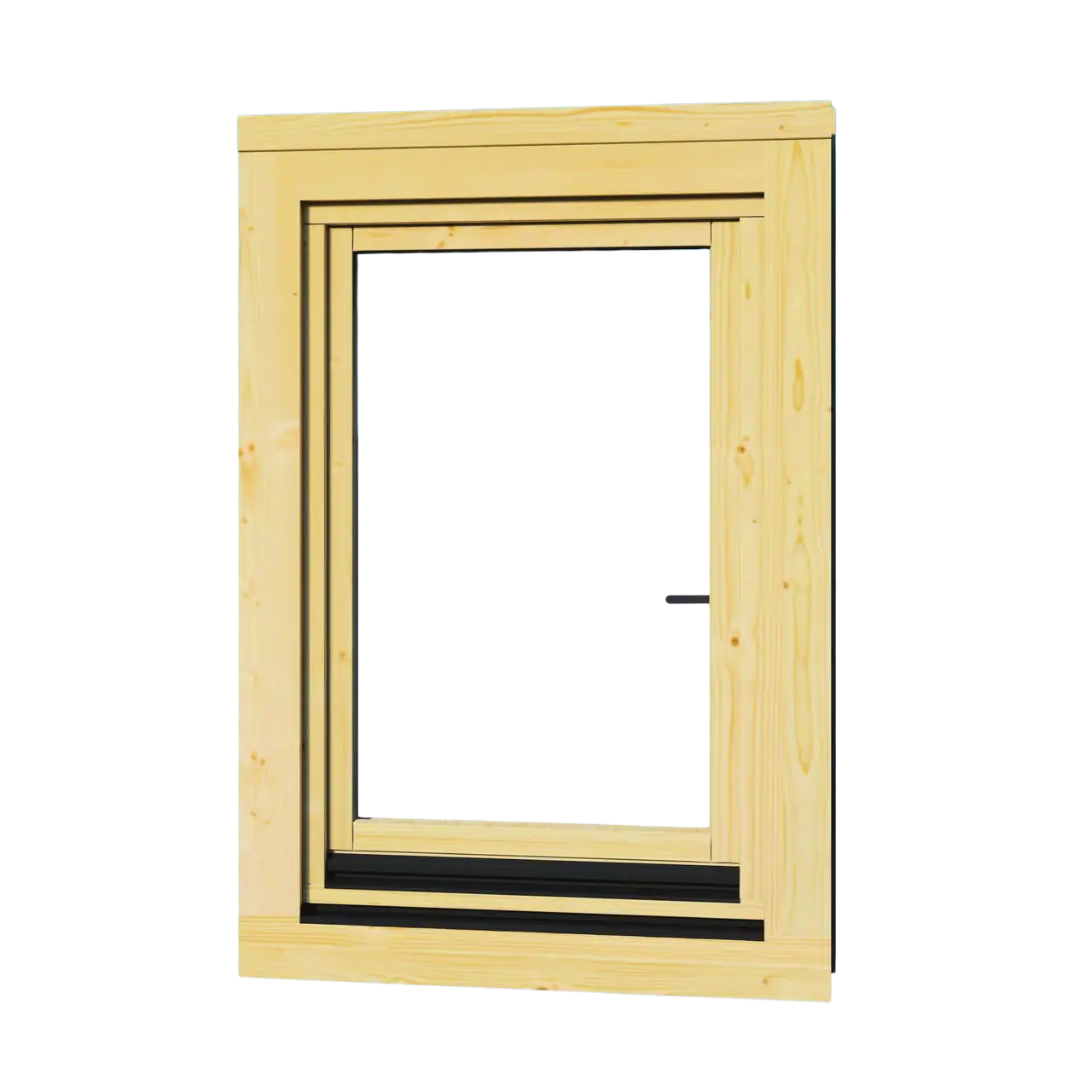

Premium Window GW-2

Premium 68mm laminated pine tilt-and-turn window with double glazing. Strong thermal performance in timber buildings.

Key specifications

68mm finger-jointed laminated pine profile
Overall size: 878 x 1306 mm
4+16+4 LowE ESG+Argon glazing, U-value 1.1
MACO tilt-and-turn mechanism, opens inward
Thermal rain protection rail GTR 22.44 K

68mm Tilt-and-Turn Timber Window with LowE Double Glazing

The GW-2 is a premium timber window made for wooden garden buildings, log cabins, and outdoor structures where thermal performance and long-term durability are essential. Built from finger-jointed and laminated pine wood with a 68mm profile, it delivers structural strength and stability.

Precision Hardware, Superior Weatherproofing

Fitted with a high-quality tilt-and-turn mechanism from the MACO brand, the GW-2 opens inward. The thermal rain protection rail shields the frame from moisture ingress, while rubber draught excluders along the perimeter provide wind and water resistance.

High-Performance Glazing

The two 4mm tempered glass panes are separated by a 16mm cavity (4+16+4) filled with Argon gas, which provides better insulation than air. One pane features a microscopically thin coating that reflects heat, enhancing energy efficiency by reducing thermal transfer (LowE). The silicone sealant ensures the unit remains airtight and watertight throughout its life. Overall, the composition achieves a U-value of 1.1.

Protective Details That Last

A black metal sill protects the lower wood casing from rain splash and ground moisture — a detail that significantly extends the window’s service life. The GW-2 is compatible with Dadsons’ range of log cabins and garden structures, and is available as part of a complete kit or as a standalone component for resellers.

Specifications

Width

87.8 cm

Height

130.6 cm

Windows

Applications

Guest Accommodation & Hospitality

Expand your living space and welcome visitors in style with high-quality guest accommodation. From cozy backyard cabins for family visits to premium holiday rental units for Airbnb, we provide the essential foundation. Our complete wooden houses offer turnkey convenience, while our structural timber ensures robust frameworks for custom hospitality projects and extensions.

Home Office & Creative Studio

Create the perfect productive environment just steps from your home. Whether you need a distraction-free home office, an inspiring art studio, or a craft workshop, our solutions offer the ideal space. Choose from our range of ready-made garden buildings or utilize our premium timber materials to construct a bespoke workspace designed for year-round comfort and professional focus.

Wellness & Sauna

Embrace the health benefits of authentic Nordic wellness right in your own backyard. Our timber products are at the heart of the traditional sauna experience. We offer complete barrel sauna kits for immediate relaxation, as well as specialized thermo-treated wood and cladding for building custom spa facilities. Create a personal wellness retreat that rejuvenates both body and mind.

Windows, Doors & Architectural Joinery

Upgrade your property with high-performance operational elements. Our range of premium and standard windows and doors offers excellent thermal efficiency and aesthetic appeal for both new builds and renovations. Beyond the units themselves, we supply the specialized timber components needed for architectural joinery, allowing for custom fitting, frame construction, and the creation of unique entrances that make a lasting first impression.

Why choose Premium Window GW-2?

High-Performance Thermal Glazing

The 4+16+4 LowE ESG+Argon double glazing unit achieves a U-value of 1.1, significantly reducing heat loss through the window. This makes the GW-2 suitable for use in insulated garden buildings intended for year-round occupation.

MACO Tilt-and-Turn Mechanism

Fitted with a MACO brand tilt-and-turn mechanism, the GW-2 opens fully inward for easy cleaning or tilts at the top for controlled ventilation.

Durable Laminated Pine Profile

The 68mm profile is constructed from finger-jointed and laminated pine. Dimensional stability and resistance to warping and checking. The layered construction reduces movement caused by seasonal humidity changes, maintaining a reliable seal over time.

Comprehensive Weatherproofing Details

A black metal sill protects the lower casing from rain splash and ground moisture, while rubber draught excluders around the perimeter minimise air infiltration. The spruce casing is finished with rubber sealants for a fully weatherproof assembly from the factory.

Frequently Asked Questions

The GW-2 has an overall frame size of 878 mm wide by 1306 mm tall. The glazed unit dimensions are 618 mm wide by 956 mm tall.

The GW-2 uses a 4+16+4 LowE ESG+Argon double glazing unit with a U-value of 1.1. This level of thermal performance is suitable for insulated timber structures used year-round.

The GW-2 features a MACO tilt-and-turn mechanism that allows the window to tilt inward at the top for ventilation, or swing fully inward on a vertical axis for cleaning and maximum airflow. Both functions are controlled via a single handle.

Yes. The GW-2 integrates with Dadsons’ timber building range.

The GW-2 includes a thermal rain protection rail (GTR 22.44 K), rubber draught excluders for wind and water resistance, a black metal sill for wood casing protection, and rubber sealants on the spruce casing.

Yes. The GW-2 can be supplied as an individual window unit for integration into existing structures or new builds. Please contact Dadsons directly to discuss order quantities and lead times.

Timber windows should be inspected annually and any exposed or bare wood treated with a suitable exterior wood preservative or paint system. The MACO hardware should be lubricated periodically. Rubber seals should be inspected and replaced if signs of deterioration are present.
