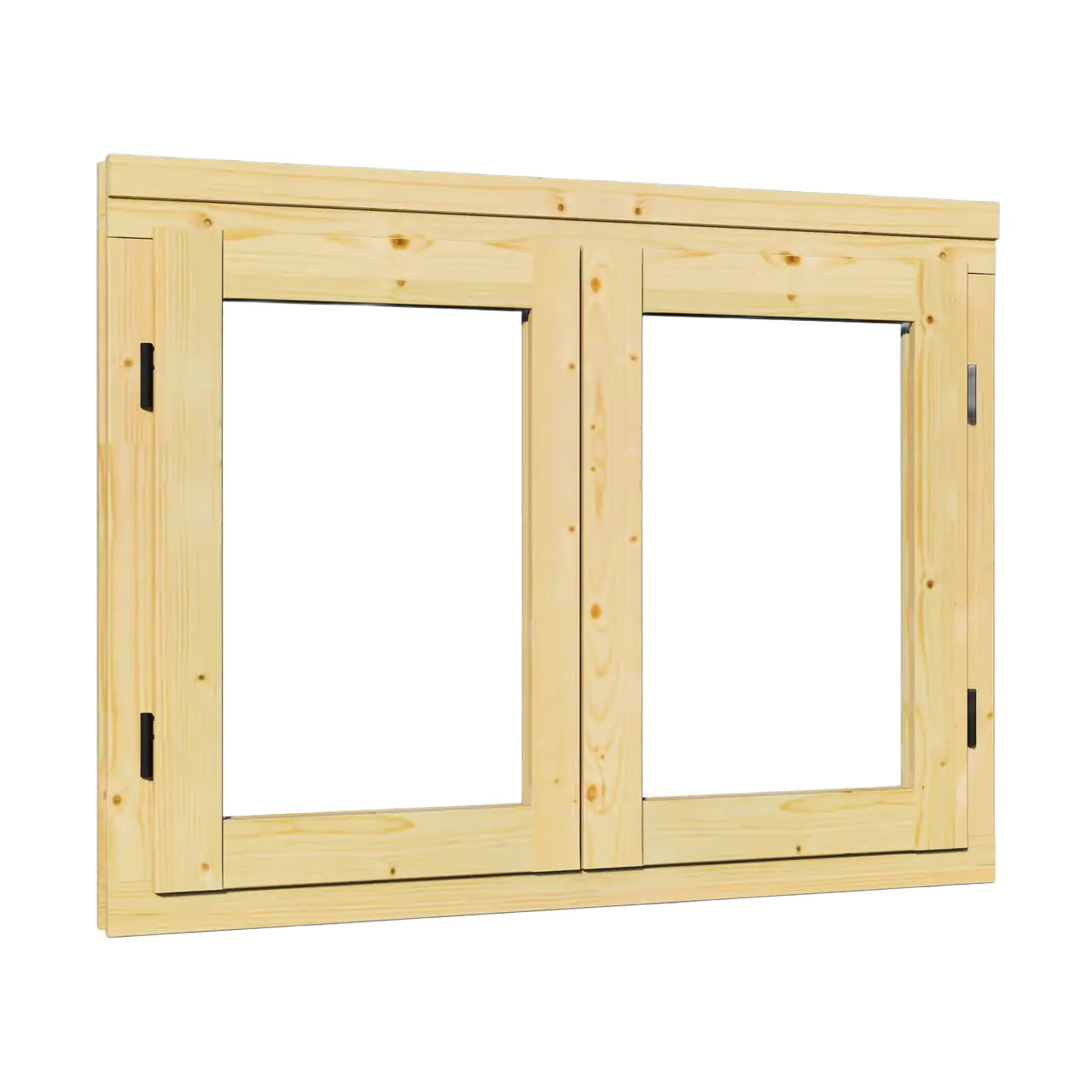

Double Window SDW-3

Double-glazed outward-opening timber window in 45mm spruce profile. 1326x1011mm overall size with rubber draught excluders and black hardware. Ideal for garden buildings.

Key specifications

Overall size: 1326 x 1011 mm
Clear glazed opening: 1146 x 796 mm
45mm solid spruce profile
Double glazing 4+6+4 with silicone sealant
Outward opening with allen-key adjustable hinges

45mm Spruce Double-Glazed Window for Timber Buildings

The SDW-3 is a double-glazed outward-opening timber window perfect for wooden buildings. Constructed from 45mm solid spruce profile, it combines natural warmth with dependable weatherproofing. It’s a practical, attractive choice for both standard and bespoke timber structures.

Durability and Weather Resistance

The SDW-3 features double-glazed 4+6+4 units sealed with silicone sealant, providing effective thermal and acoustic performance. Rubber draught excluders are fitted throughout to guard against wind and water ingress, while the spruce casing is finished with rubber sealants for an additional layer of protection.

Precision Hardware and Easy Adjustment

Hinges are supplied with decorative black covers and can be fully adjusted using a standard allen key, allowing precise alignment during and after installation. A black high-quality handle completes the fitting. All hardware is selected for long-term reliability in outdoor timber applications.

Specifications

Width

132.6 cm

Height

101.6 cm

Applications

Windows, Doors & Architectural Joinery

Upgrade your property with high-performance operational elements. Our range of premium and standard windows and doors offers excellent thermal efficiency and aesthetic appeal for both new builds and renovations. Beyond the units themselves, we supply the specialized timber components needed for architectural joinery, allowing for custom fitting, frame construction, and the creation of unique entrances that make a lasting first impression.

Why choose Double Window SDW-3?

Double-Glazed

The 4+6+4 double-glazed unit with silicone sealant provides effective insulation against heat loss and external noise. This makes the SDW-3 well-suited for garden buildings used beyond the warmest summer months.

Wind and Waterproof Sealing

Rubber draught excluders are fitted around the full perimeter of the opening sash, while the spruce casing incorporates rubber sealants to prevent wind and water penetration.

Solid Spruce Construction

The 45mm spruce profile offers excellent dimensional stability and a natural aesthetic that complements log cabin and timber frame buildings. The wood grain and texture may vary slightly between units, reflecting the natural characteristics of solid spruce.

Outward Opening Design

The outward-opening configuration maximises usable interior space and suits the ventilation requirements of garden rooms, summer houses, and hobby buildings. The black high-quality handle provides a secure, comfortable grip.

Frequently Asked Questions

The SDW-3 has an overall frame size of 1326 x 1011 mm. The clear glazed opening measures 1146 x 796 mm.

The SDW-3 is fitted with double-glazed 4+6+4 units sealed with silicone sealant.

Yes. The hinges are fully adjustable using a standard allen key, allowing precise alignment of the sash both during and after installation.

The SDW-3 is supplied with a black high-quality handle and black decorative hinge covers.
